Description
Key Features
- Non-handed unit
- Quick and easy to install
- 5-year warranty
- Parallel arm bracket optional
- Finish Customization: Pantone/RAL matched paint.
Door Closer L601-6BC
- Category: Ships door closer Series

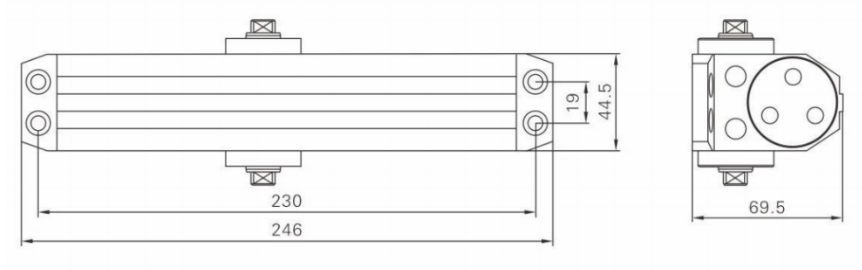

- Size: 246×44.5×69.5mm
- Installation Hole Size: 230x19mm
- Power: EN1-EN6
- Door Weight: 15-150kgs
- Door Width: ≤1500mm
Additional information
| EN1 | Yes |
|---|---|
| EN2 | Yes |
| EN3 | Yes |
| EN4 | Yes |
| EN5 | Yes |
| EN6 | Yes |
| Mechanism | Rack and pinion |
| Adjustable closing speed | Yes |
| Adjustable latching speed | Yes |
| Back check function | Optional |
| Hold open function | No |
| Maximum door width(mm) | 1500 |
| Maximum door weight(kg) | 150 |
| LH and RH doors – universal application | Yes |
| Dimension: Length*Width*Height | 246×44.5×69.5mm |
| Hole distance | 230x19mm |
