Description
Key Features
- Non-handed unit
- Quick and easy to install
- Finish Customization: Pantone/RAL matched paint.
Non-Digging Floor Spring For Glass Door – Large Power
- Category： floor spring
- Size: 190x41x70mm
- Power: EN4/5
- Door Weight: 60-100kgs
- Door Width: ≤1250mm
Additional information
| EN4 | Yes |
|---|---|
| EN5 | Yes |
| Mechanism | Rack and pinion |
| Adjustable closing speed | Yes |
| Adjustable latching speed | Yes |
| Back check function | No |
| Hold open function | Optional |
| Maximum door width(mm) | 1250 |
| Maximum door weight(kg) | 100 |
| LH and RH doors – universal application | Yes |

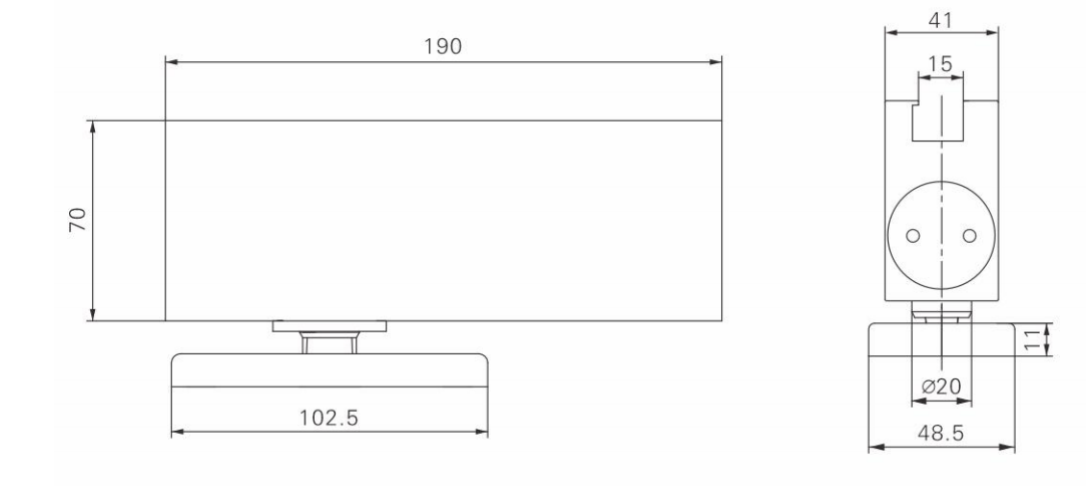

| Dimension: Length*Width*Height | 190x41x70mm |
