Description
Key Features
- Non-handed unit
- Quick and easy to install
- Parallel arm bracket optional
- Sliding rail optional
- 5-year warranty
- Finish Customization: Pantone/RAL matched paint, SSS/SNP arm, PA bracket,a nd corrosion-resistant cover.
Door Closer L812-4
- Category：8000 Series

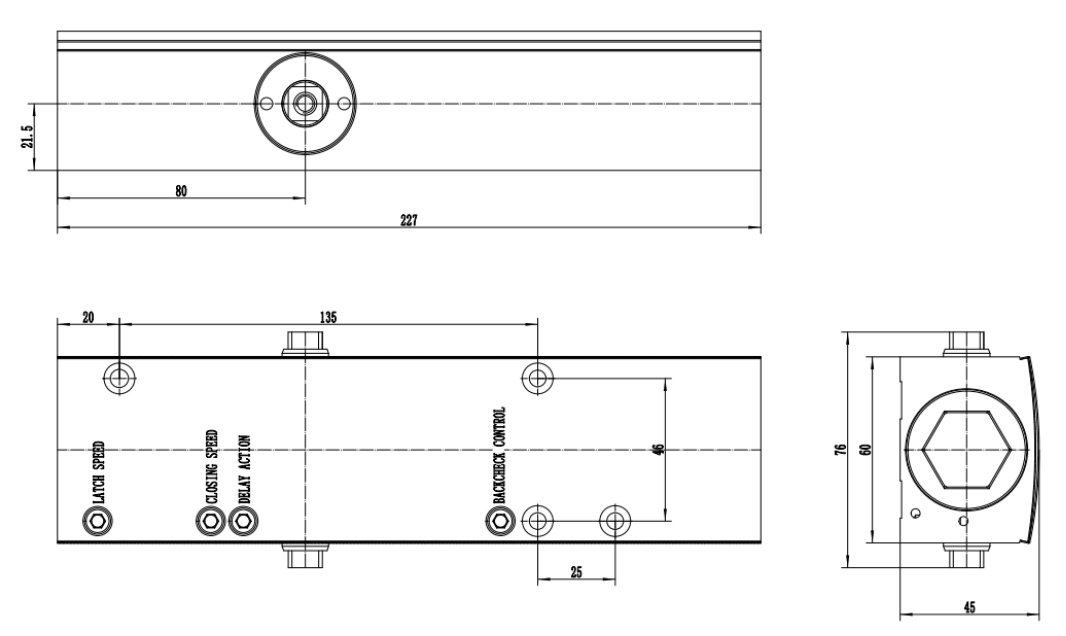

- Size: 227x60x45mm
- Installation Hole Size: 160x46mm
- Power: EN2-4
- Door Weight: 20-85kgs
- Door Width: ≤1100 mm
Additional information
| EN2 | Yes |
|---|---|
| EN3 | Yes |
| EN4 | Yes |
| Mechanism | Rack and pinion |
| Adjustable closing speed | Yes |
| Adjustable latching speed | Yes |
| Back check function | Yes |
| Delay function | Optional |
| Hold open function | Optional |
| Maximum door width(mm) | 1100 |
| Maximum door weight(kg) | 85 |
| LH and RH doors – universal application | Yes |
| Dimension: Length*Width*Height | 227x60x45mm |
| Hole distance | 160x46mm |
