Description
Key Features
- Non-handed unit
- Quick and easy to install
- 5-year warranty
- Finish Customization: Pantone/RAL matched paint.
Door Closer L153-5
- Category: 1000 Series
- Size: 263x72x37mm
- Installation Hole Size: 260x19mm
- Power: EN3-EN5
- Door Weight: 40-120kgs
- Door Width: ≤1250mm
Additional information
| EN3 | Yes |
|---|---|
| EN4 | Yes |
| EN5 | Yes |
| Mechanism | Rack and pinion |
| Adjustable closing speed | Yes |
| Adjustable latching speed | Yes |
| Back check function | No |
| Hold open function | Yes |
| Maximum door width(mm) | 1250 |
| Maximum door weight(kg) | 120 |
| LH and RH doors – universal application | Yes |

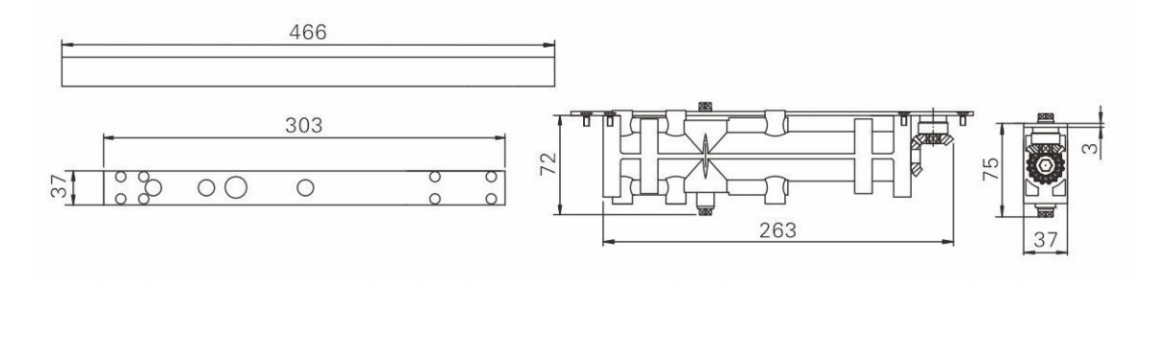

| Dimension: Length*Width*Height | 263x72x37mm |
| Hole distance | 260x19mm |
